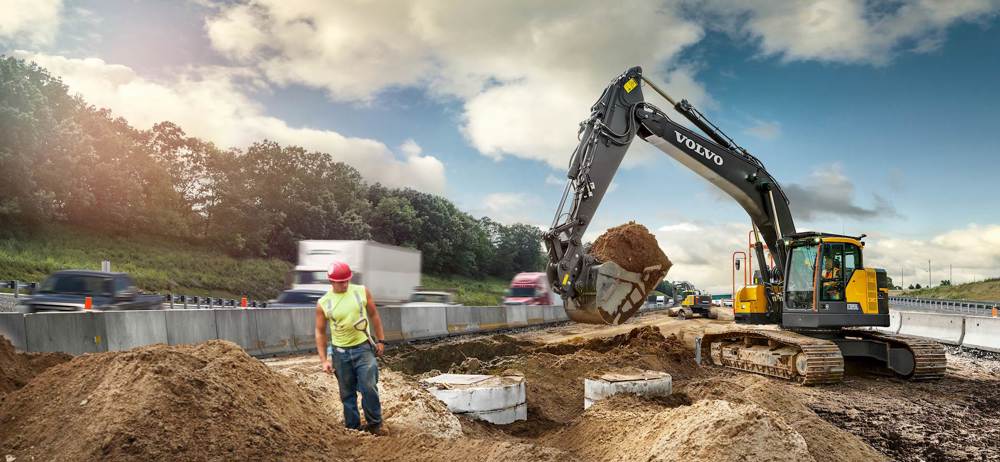

Lielie kāpurķēžu ekskavatori

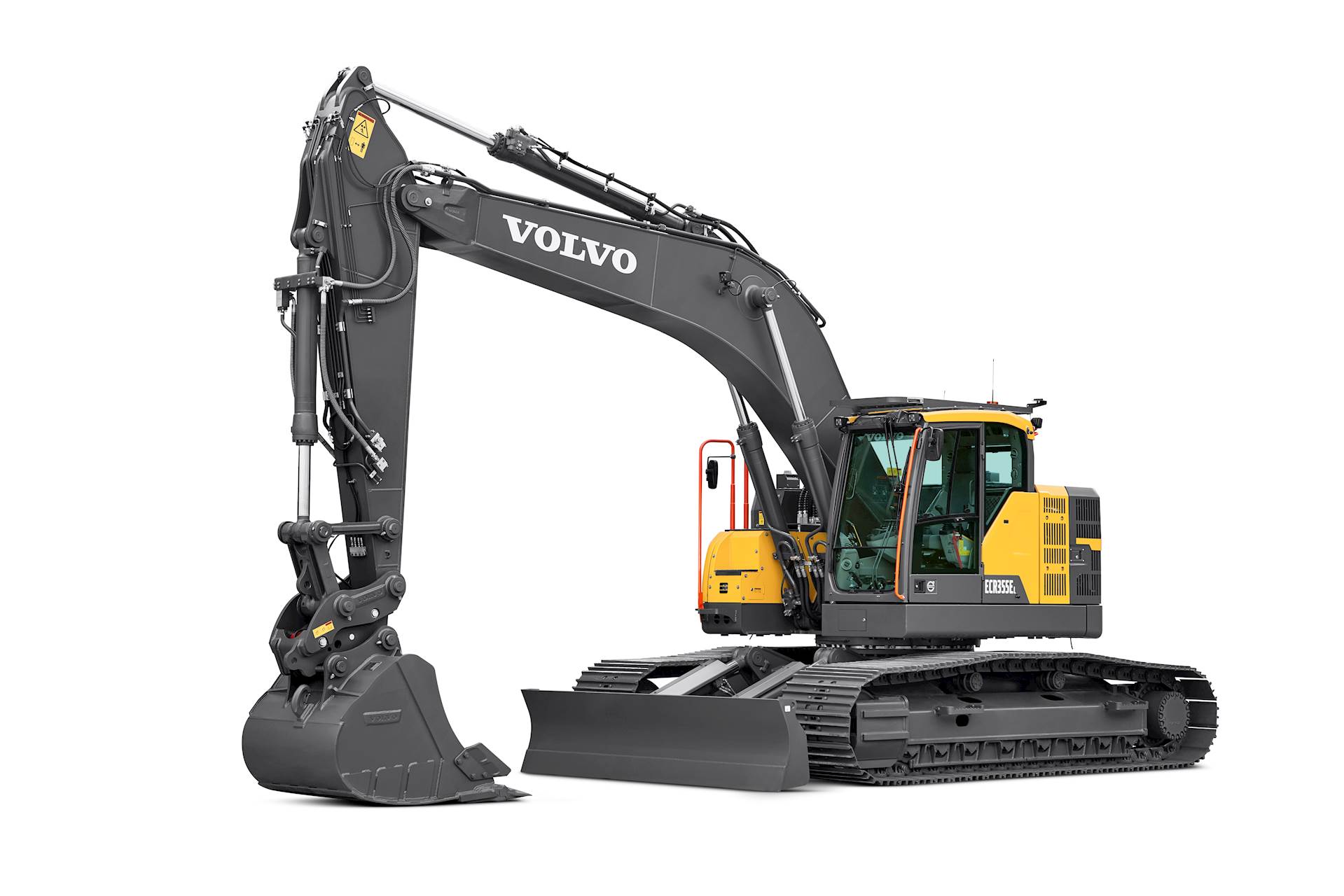

ECR355E

Paļaujieties uz ECR355E īsu pagriešanas rādiusu, kas sniedz noturīgu stabilitāti, lielāku celšanas kapacitāti un rakšanas spēku, pārbaudītu izturību un lielāku vadāmību. Piekļūstiet šaurām darba vietām, pateicoties garajam standarta funkciju sarakstam, kas gudri veidotas, lai nodrošinātu efektīvu darbību un ilglaicīgu sniegumu.

Darba svars slodze

34100 - 38000 kg
Bruto jauda

180 kW
Kausa ietilpība

0.92 - 2.06 m3

Mēs varam palīdzēt ar finansējumu
Servisa līgumi
Pielāgoti Jūsu vajadzībām

Specifikācija

Lejuplādēt brošūru

Darba svars slodze

34100 - 38000 kg
Izlaušanas spēks, SAE J1179 (ar pastiprinājumu)

179 kN
Izlaušanas spēks, SAE J1179 (parasti)

165 kN
Kausa ietilpība

0.92 - 2.06 m3
Bruto jauda

180 kW
... ar dzinēja apgriezieniem

1800 apgr./min
Celtspēja šasijas līmenī

12680 kg
... sniedzamībā /augstumā

6 / 1.5 m
Maks. rakšanas dziļums (īsais/garais kravas rāmis)

6818 mm
Maks. rakšanas sniedzamība

10741 mm
Kopējais platums

3340 mm
Aizmugures pagrieziena rādiuss

1900 mm
Izplēšanas spēks, SAE J1179 (ar pastiprinājumu)

144 kN
Izplēšanas spēks, SAE J1179 (parasti)

133 kN

Lejuplādēt brošūru

Iezīmes

Īss pagrieziens, noturīga stabilitāte

Kör tryggt med ECR355E. Den kraftfulla maskinen med kort svängradie ger orubblig stabilitet – så att du kan utnyttja kraften fullt ut. Den solida konstruktionen har precisionsplacerade komponenter för optimal balans, samt ett schaktblad som tillval som kan användas för att stabilisera grävaren vid arbete på ojämnt underlag och för snabbare uppstädning av arbetsområdet.

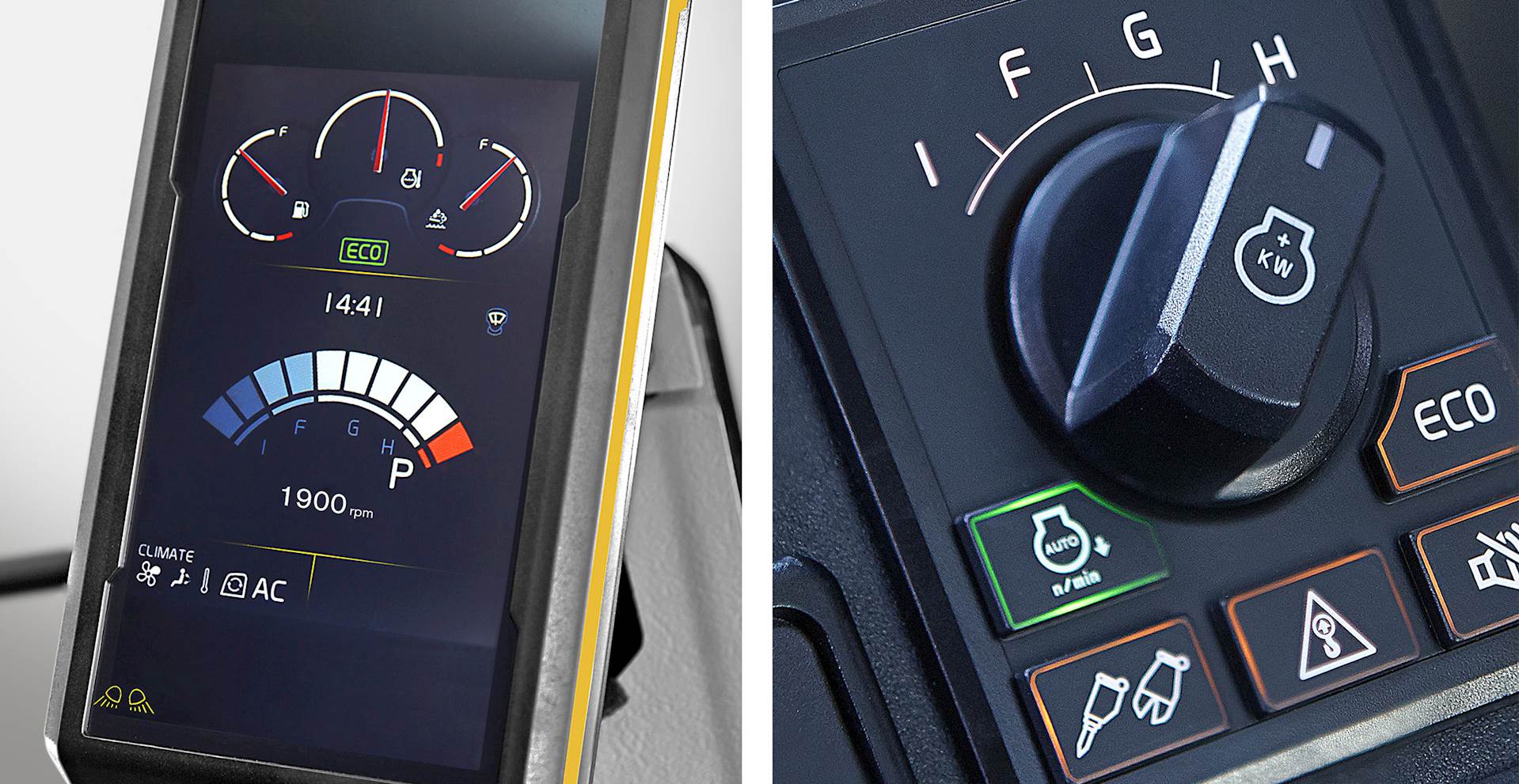

The right mode for the job

Keep performance high and costs low with the integrated Volvo work mode system. Choose the best work mode for the task at hand – select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max). The new ECO mode uses the latest electronic pump control technology to further boost fuel efficiency without any loss in performance.

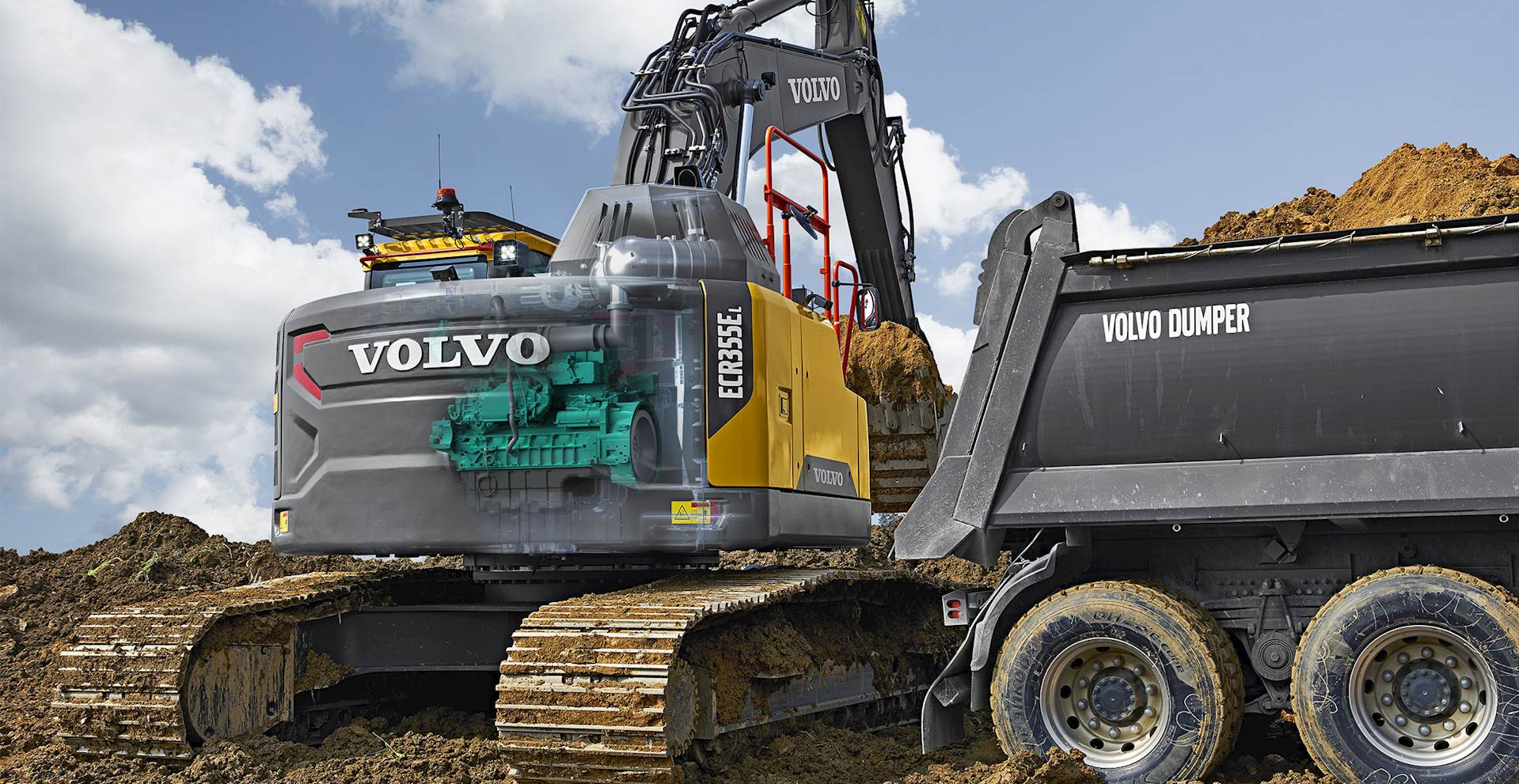

Power to perform

Power your operation with the fuel-efficient Stage V certificated Volvo engine, combining high torque and low RPM for superior, long-lasting performance. Based on proven, advanced technology and decades of experience, the robust D8 engine delivers 180kW (241 Hp) of power, while reducing both fuel consumption and emissions.

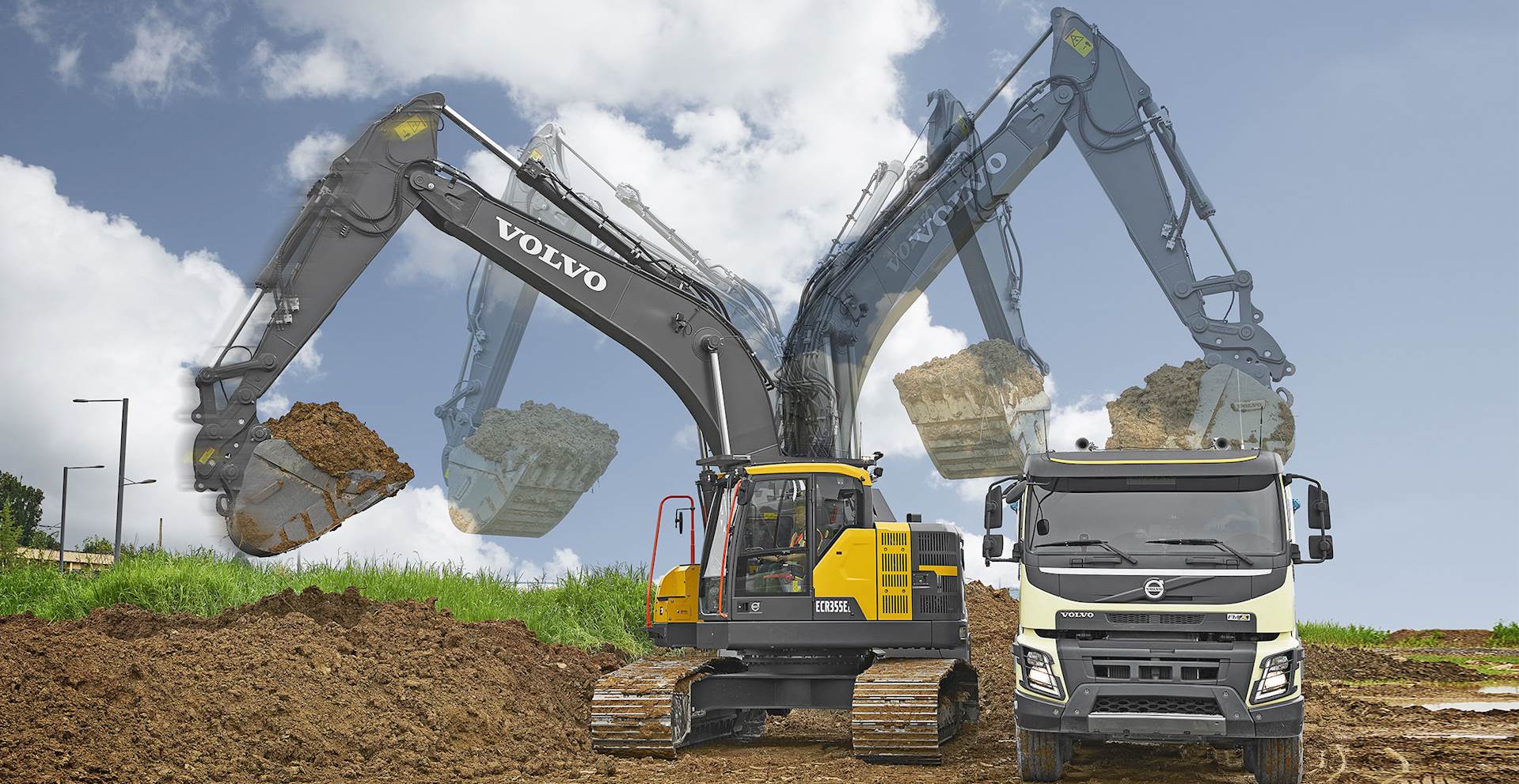

Get to work – fast

Cut cycle times to a minimum and increase profitability with the E-Series electro-hydraulic system. Working in combination with the Volvo engine, the advanced system increases pump power for faster and smoother operation, all while providing greater control, superior digging performance and unbeatable productivity.

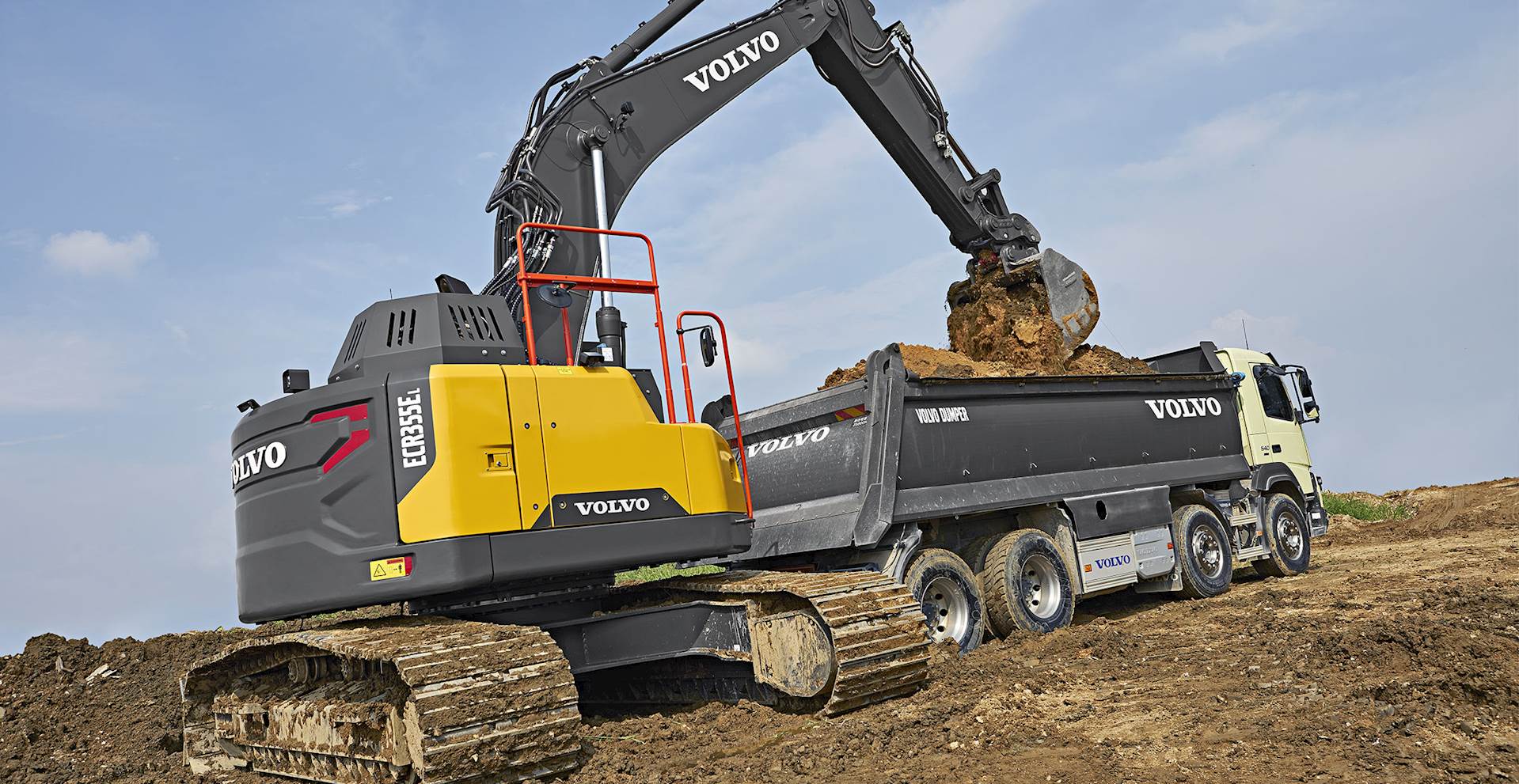

Do more for less

Increase fuel efficiency by up to 10% with the ECR355E, designed to help you do more for less. ECO Mode, combined with the efficient Stage V certificated Volvo engine and superior hydraulic performance at lower engine RPM – results in improved fuel efficiency without any loss of performance in most operating conditions. Cut cycle times thanks to the boom float function, which saves pump power when lowering the boom.

Paceliet vairāk, rociet dziļāk

Rociet, pagrieziet un iekraujiet vairāk nekā iepriekš ar ECR355E, kas aprīkots ar uzlabotu elektrohidraulisku tehnoloģiju. Piedāvājot ievērojamu celšanas kapacitātes un rakšanas spēja palielinājumu, šī mašīna ir ideāli piemērota cauruļu likšanai, tranšeju uzstādīšanai un komunālajiem pakalpojumiem. Ar ECR355E smags darbs vēl nekad nav bijis tik viegls.

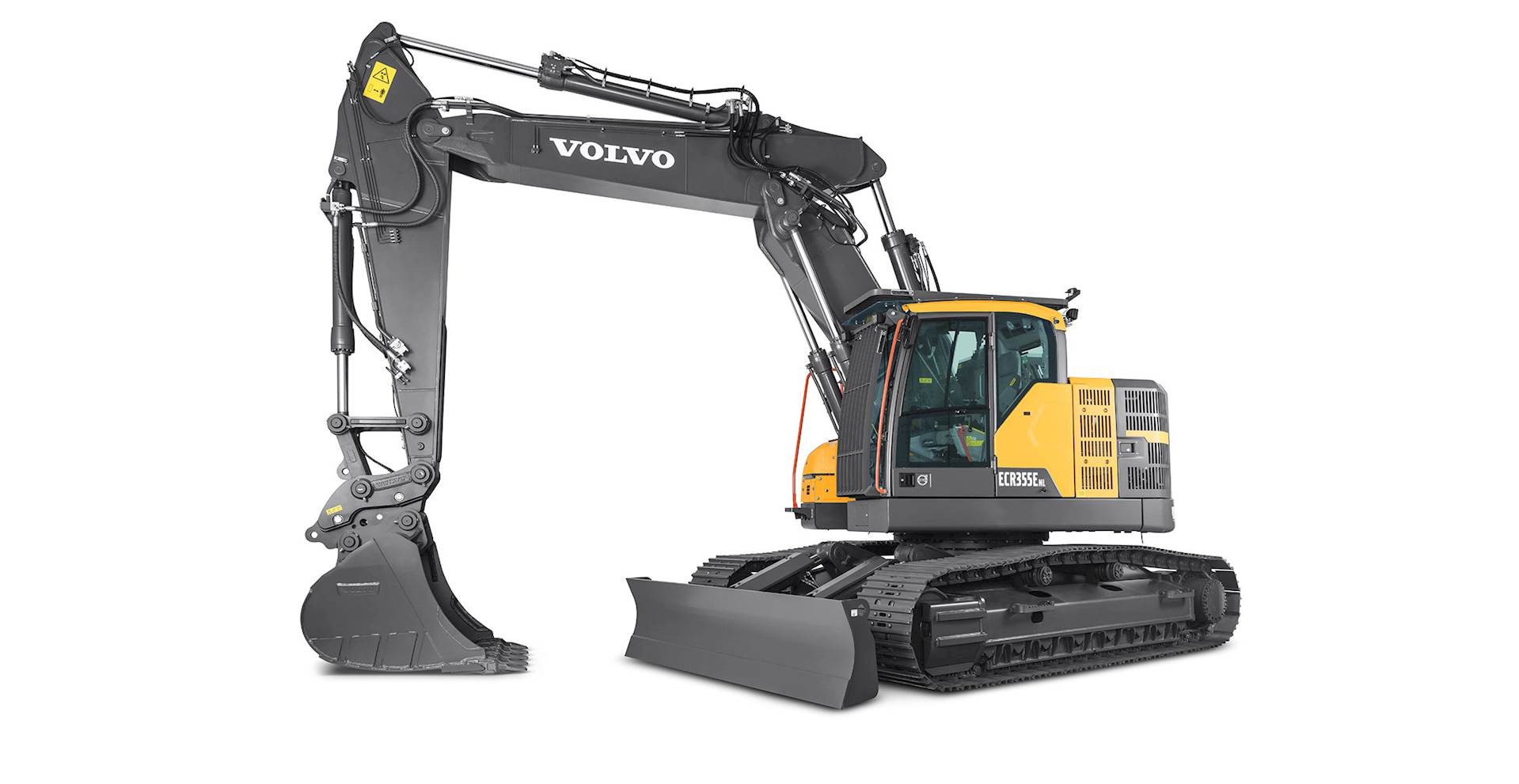

Adapt to any application

From road construction to heavy infrastructure work, the ECR355E’s class-leading short swing radius goes where conventional machines cannot. Add the Volvo dozer blade, quick coupler, auxiliary hydraulics or the optional two-piece boom, and the result is greater versatility and productivity. Adapt to any application with the ECR355E without compromising on reach, lifting or digging performance.
Productivity services

Improve and maintain site productivity with a host of smart solutions offered by Productivity Services. Operator behavior, site setup and machine configuration are just some of the many factors within Productivity Services that can be refined to boost productivity. Choose from various machine options, Assist solutions and training packages to enhance the performance of your Volvo fleet – so you can do more and earn more.

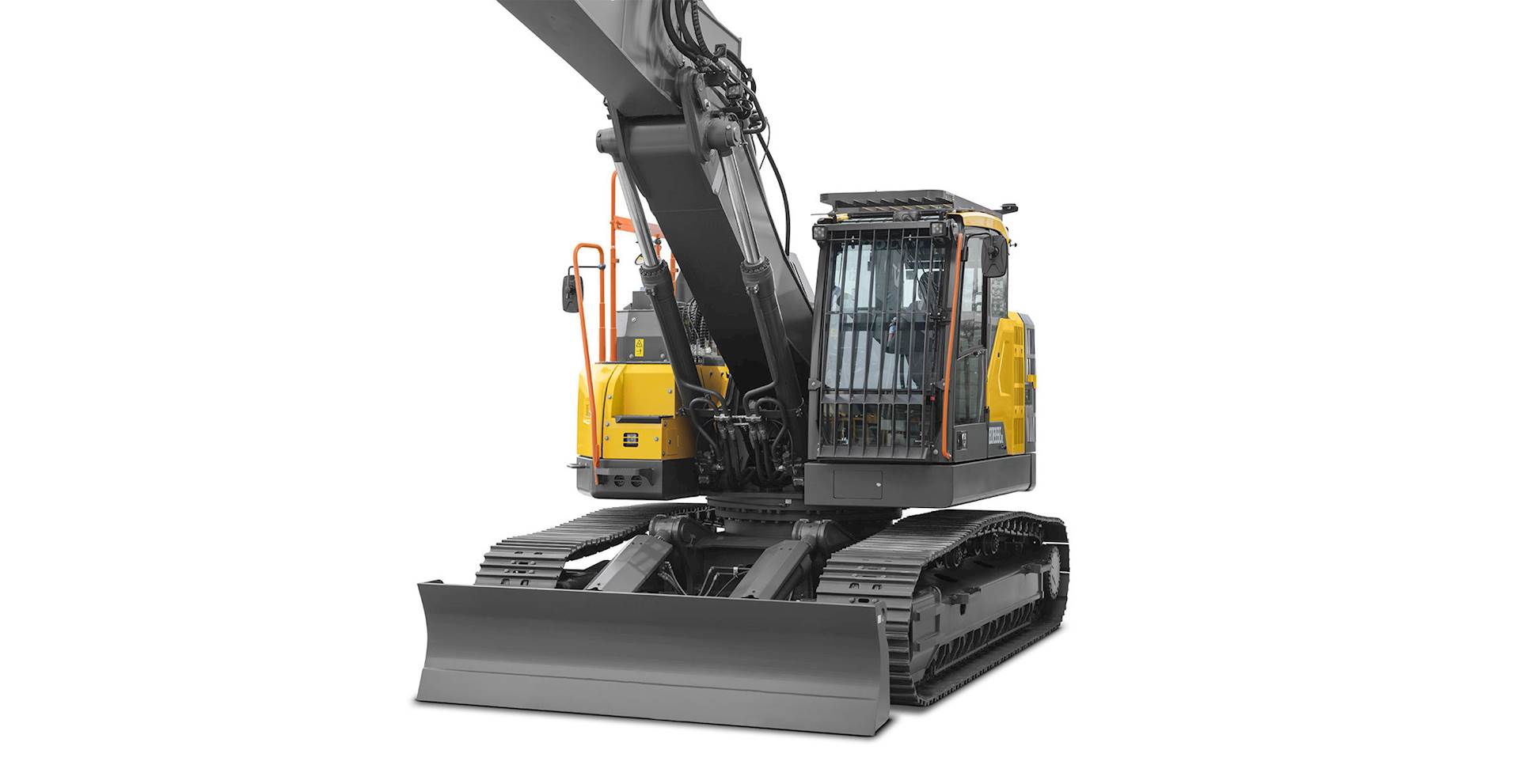

Go anywhere ability

Go everywhere in the ECR355E, designed to deliver maximum mobility, performance and power for its size. Thanks to its compact design, the machine is ideal for working in confined spaces and can easily be transported from site to site. And with the optional narrow and long undercarriage, mobility is further enhanced between job sites.

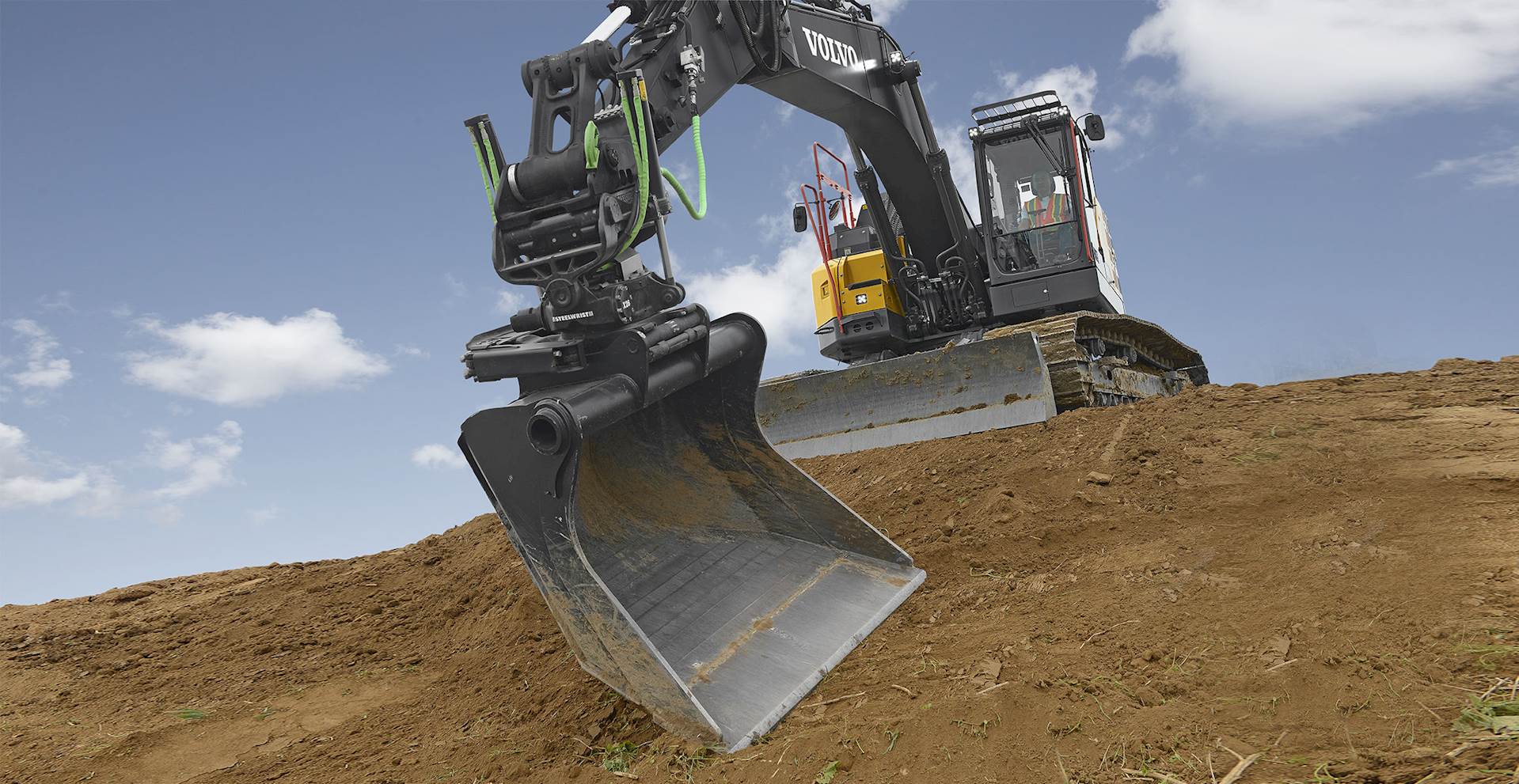

Making the grade

Experience smooth operation, fast response times and high performance with the ECR355E, featuring increased hydraulic flow for accurate control in grading and combined operations. Benefit from easier movement when traveling and lifting simultaneously, and better grading quality thanks to the synchronized boom and arm movement. Designed to complement each other, the enhancements also contribute to low fuel consumption.

Pārbaudīts

Būvēts uz izveidotās E-Series platformas, ECR355E ir aprīkots ar visām pārbaudītajām Volvo tehnoloģijām, kuras jūs sagaidītu no īsa pagriešanas rādiusa ekskavatora, kā arī ar vairākiem uzlabojumiem. Izturīga dizaina, ECR355E ticis pakļauts rūpīgām pārbaudēm, lai nodrošinātu augstāko produktivitātes standartu un mašīnas darba laiku.

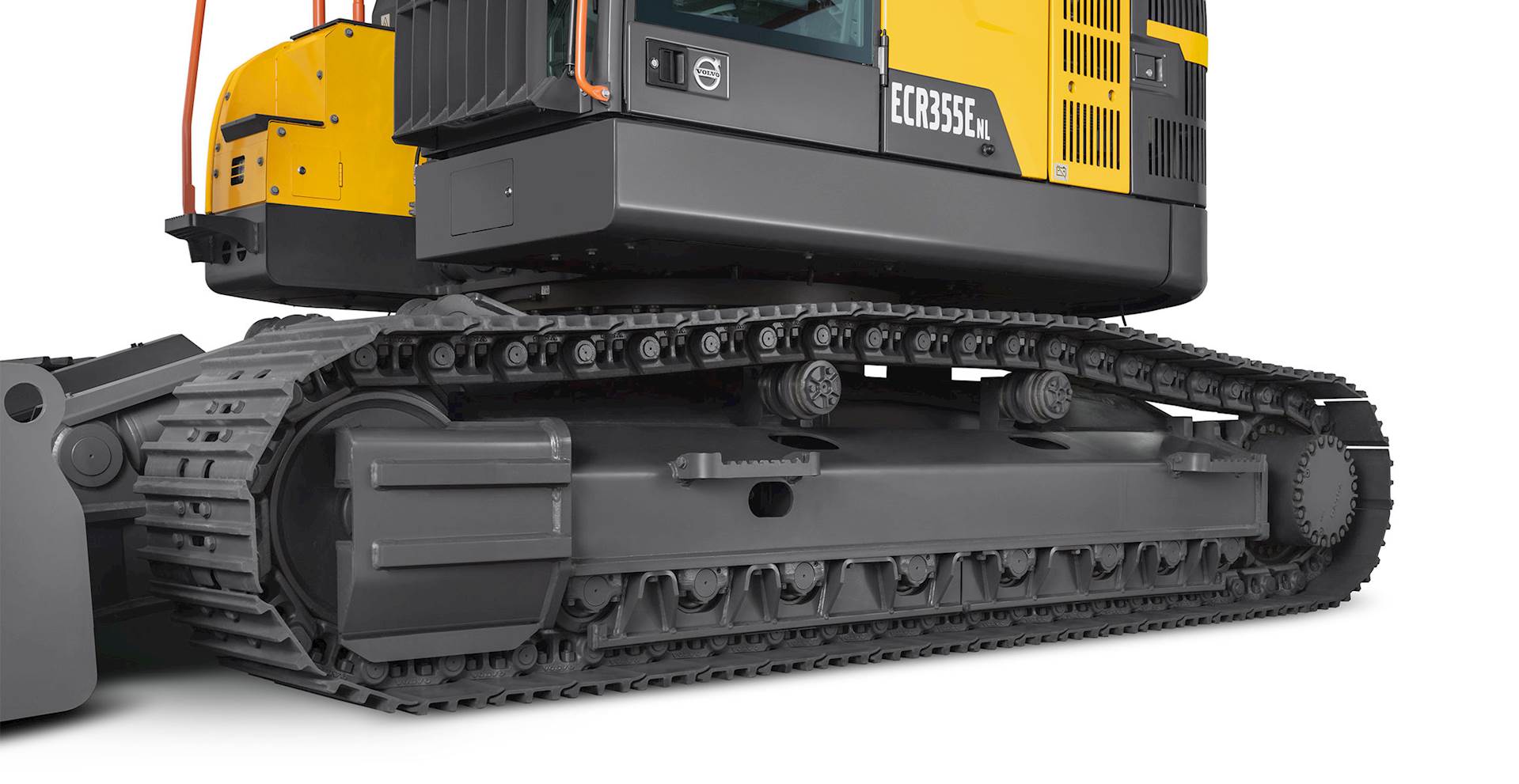

Durable by design

Achieve non-stop production with the durable and reliable ECR355E. Built with robust components, including a strong X-frame undercarriage featuring forged steel top rollers, and Volvo’s rugged boom and arms, the machine can be relied on for longevity and sustained uptime.
Uptime services

Reduce repair costs and unplanned downtime with Uptime Services, designed to help keep your machine and business up and running. Utilizing innovative technology, Volvo dealers remotely monitor your machine. Any problems can be diagnosed early and corrective steps taken towards a sustainable solution. Stay on track with the latest software, planned servicing, flexible maintenance and repair options.

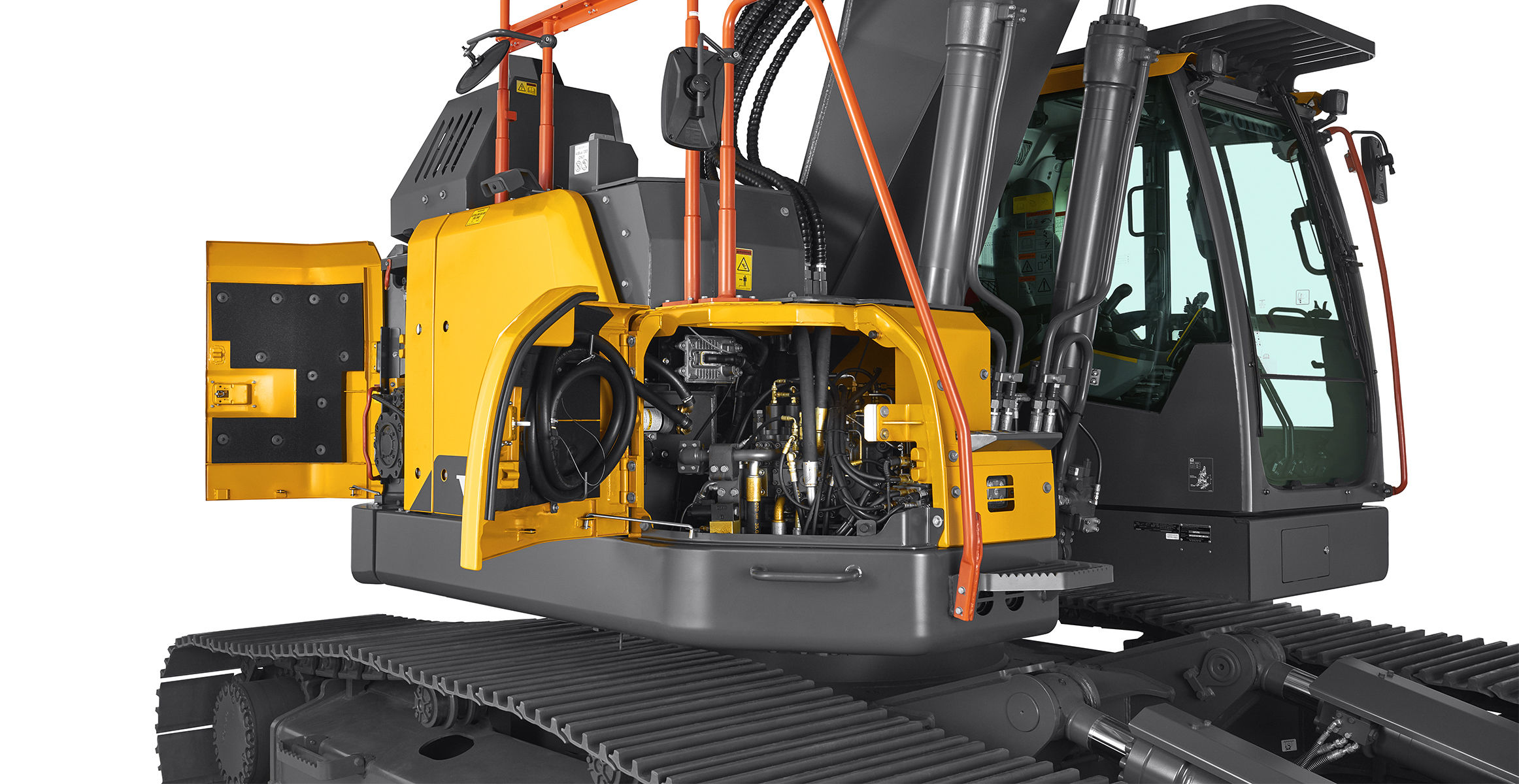

Simple serviceability

Maximize uptime with quick and safe ground-level servicing. Essential maintenance points – including pump pressure taps, filters and the cooling package – are easily accessed via the wide-opening compartment doors, which can be latched at 90°. And, with logicallygrouped greasing manifolds, anti-slip plates and plentiful handrails, you can get back to work swiftly and safely

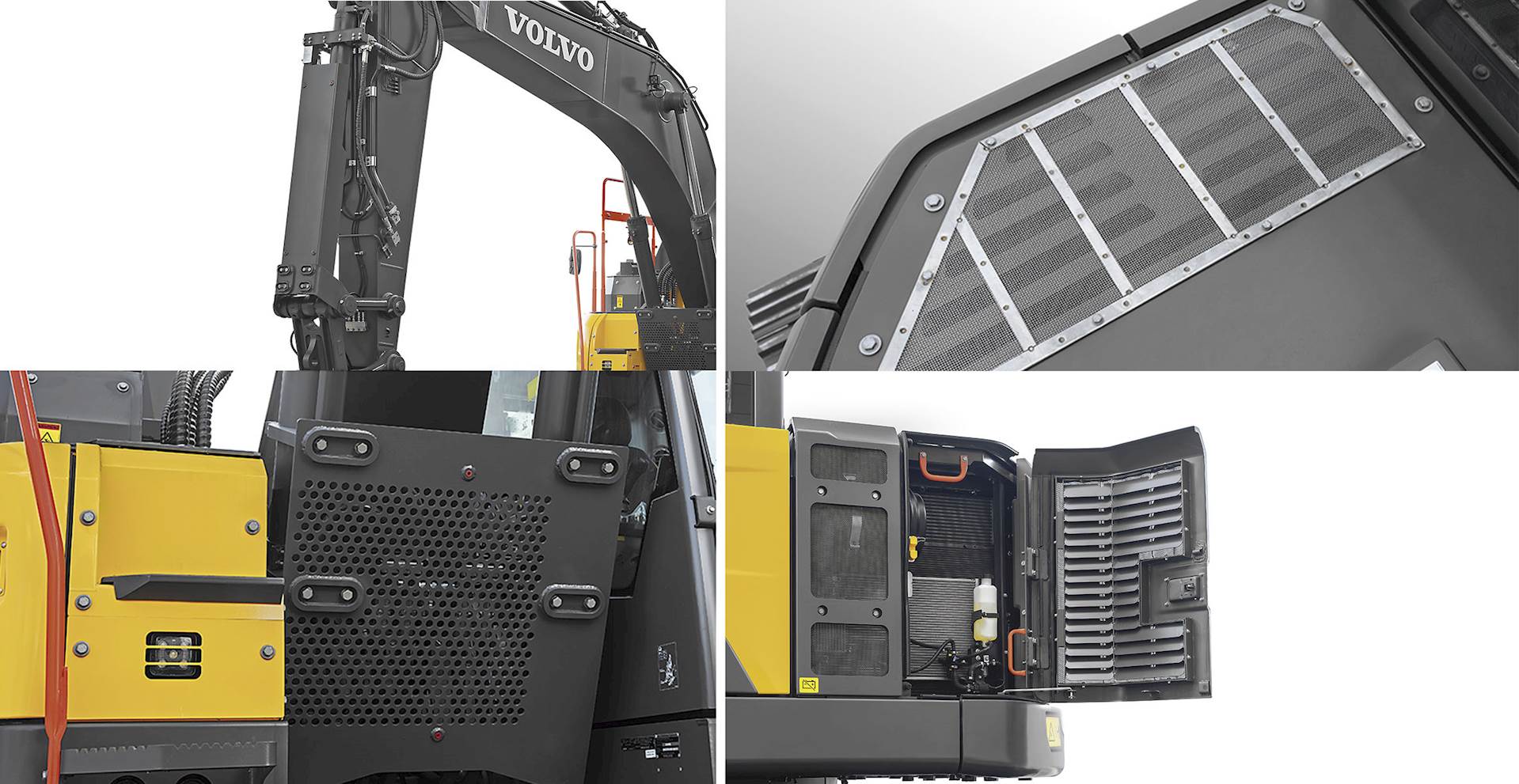

Heavy-duty options

For demolition and other heavy-duty applications, Volvo offers reinforcement and guarding packages to ensure your Volvo machine is well-protected. Unlock the potential of your ECR355E’s uptime with a range of options, including the boom and bucket cylinder guards, heavy-duty side doors, reinforced undercovers, slew ring protection and cab-mounted Falling Object Guarding (FOG) packages.

Uzņemieties vadību

Uzņemieties vadību pār savu mašīnu ar jaunu funkciju kopumu. Pielāgotie atbildes režīmi vadības svirās un pozitīvā vadības hidrauliskā sistēma nodrošina vienāda mēra jaudu un precizitāti; mašīna dara tieši to, ko operators izlēmis, lai optimizētu produktivitāti un sniegumu. Hidrauliskā sistēma ir saskaņota ar Volvo D8 dzinēju vēl vairāk uzlabojot ekskavatora jaudu un vadāmību.

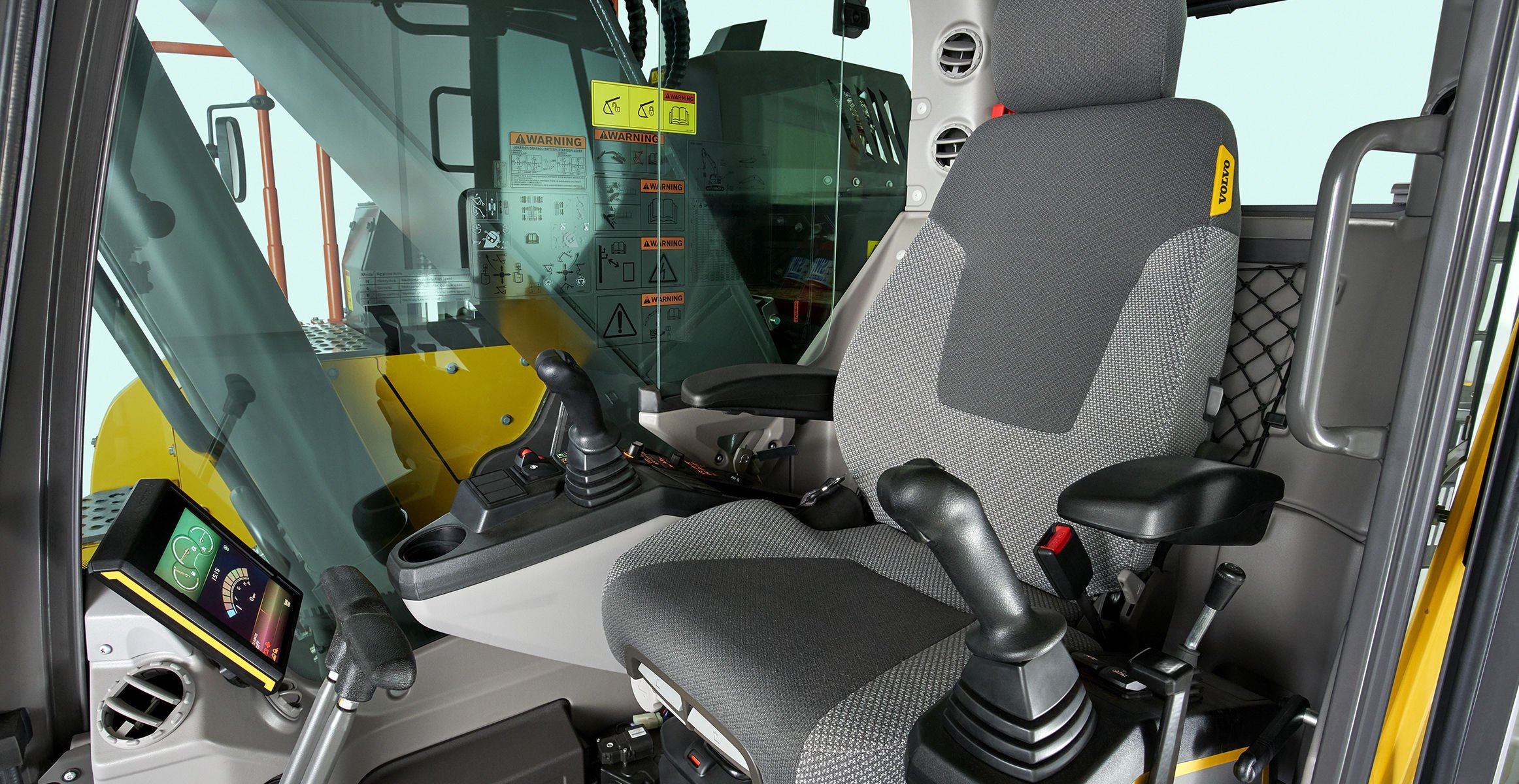

Comfortably productive

Comfort is key. The industry-leading ROPS certified Volvo cab’s expansive window area offers unparalleled visibility. The adjustable seat, ample legroom and vibration dampeners deliver superior comfort and productivity. With ergonomic controls and simplified switches integrated into the keypad, the Human Machine Interface (HMI) brings the operator and technology together, forming one cohesive working environment.

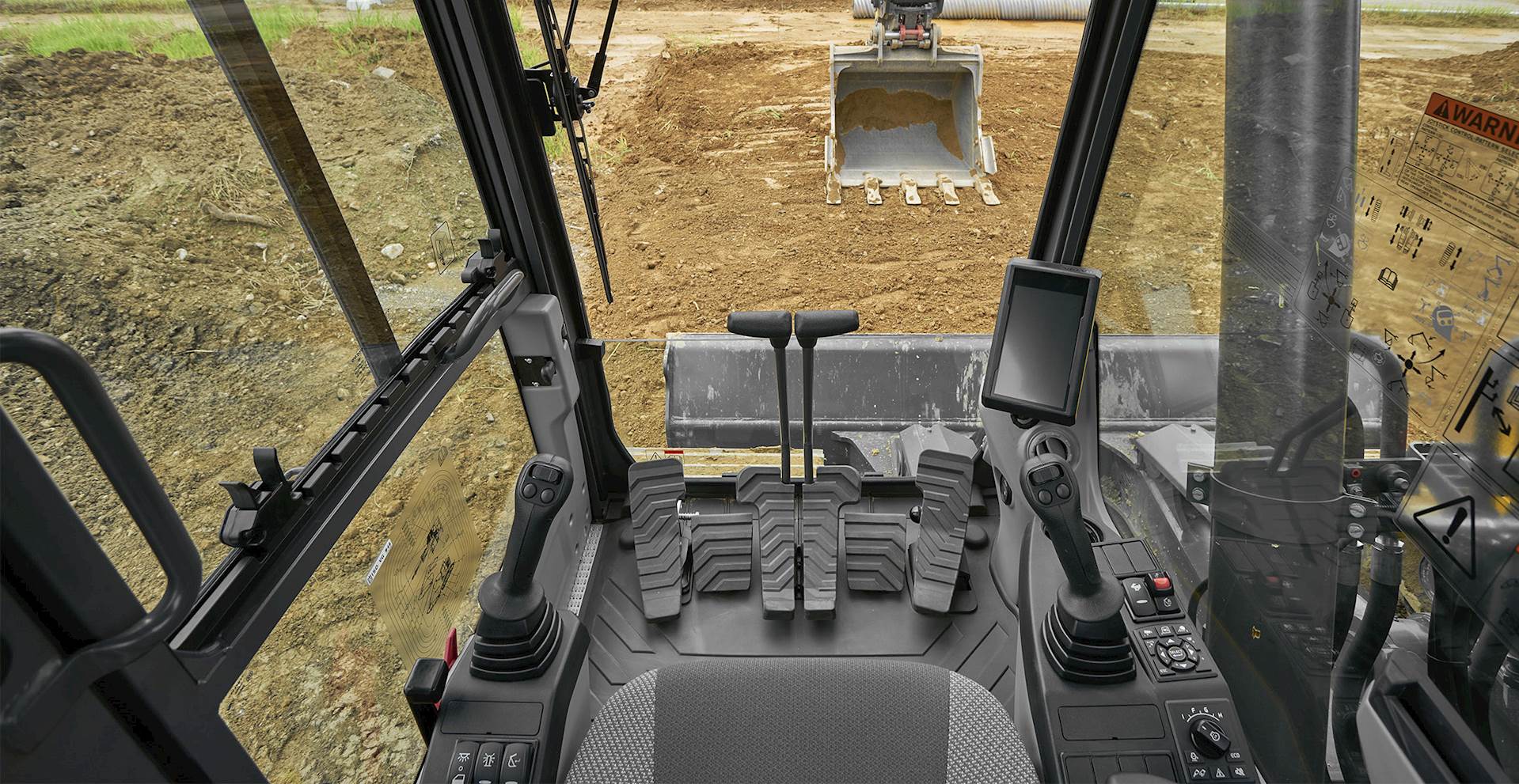

Every angle in view

From the Volvo cab, experience all-around visibility around the machine and surrounding job site thanks to narrow pillars and large windows. The ergonomically designed cab also features a large vertical windshield for greater visibility, safety and convenience – the large upper front window can be easily rolled up and out of the way, while the lower portion can be easily removed and stowed inside the cab.

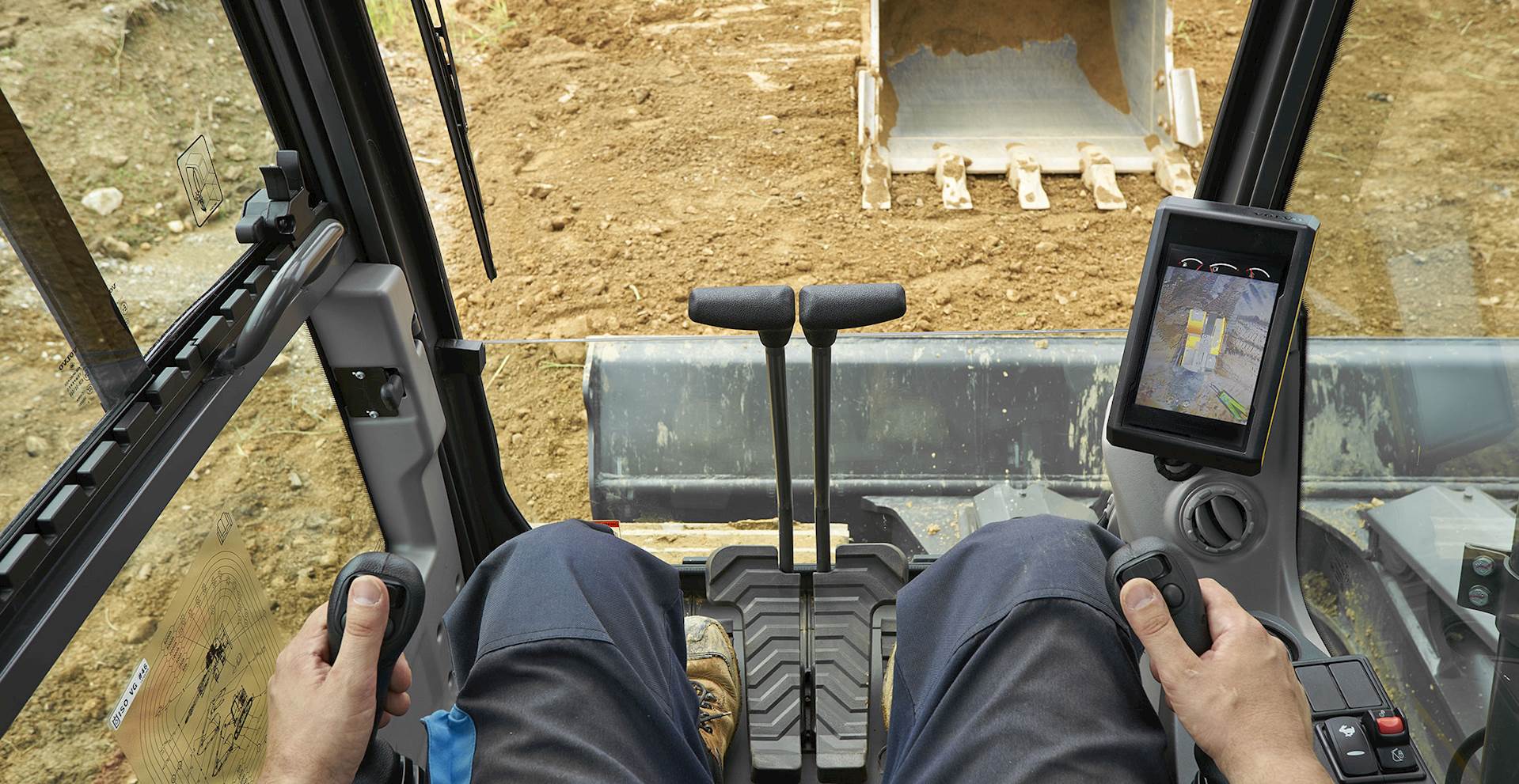

Volvo Smart View

Enhance performance and safety with Volvo Smart View. The optional feature combines four exterior-mounted cameras to create a bird’s eye view of the machine, displayed via the on-board monitor. With Volvo Smart View, you can observe all surrounding areas, which is particularly valuable in confined spaces where an extra pair of eyes informs you of the machine’s position in relation to the job at all times.

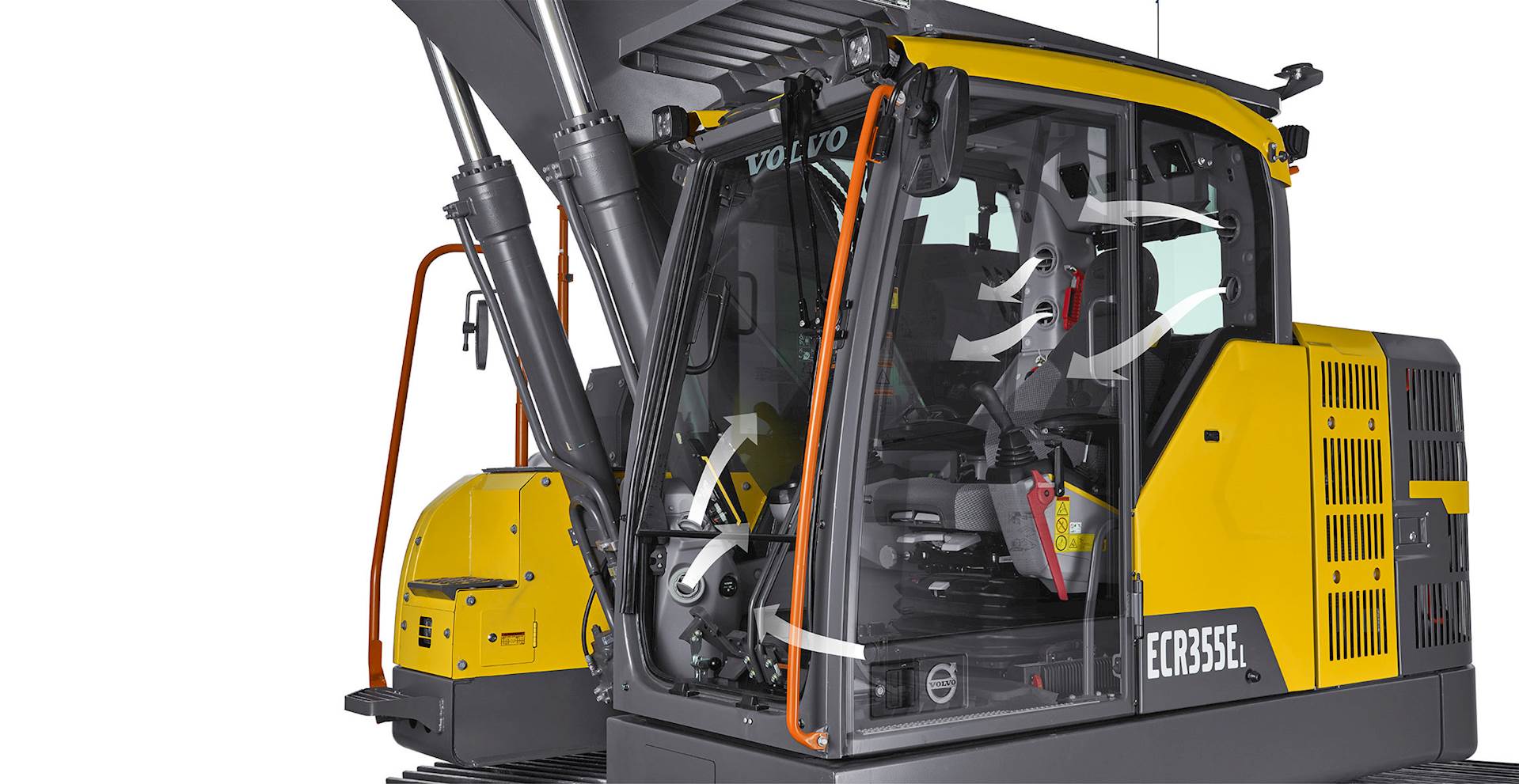

Keep cool

Stay fresh, alert and focused with the E-Series climate control system. The industry-leading air circulation and defrosting system speeds up the heating and cooling of the cab for a more comfortable environment. Easily adjust the system from the 8” LCD monitor.

Kombinējiet un savienojiet

Iegūstiet vairāk no savas mašīnas kopā ar Volvo agregātiem. Izvēlieties no īpaši būvēto agregātu klāsta, tostarp hidrauliskajiem drupinātājiem, vispārēja pielietojuma kausiem, lielas slodzes kausiem un hidrauliskajiem satvērējiem. Vai izmantojiet agregātu pārvaldības sistēmu ar izvēles spiediena iestatījumiem, lai uzstādītu dažādus pēcpārdošanas darbarīkus, lai sniegtu jūsu mašīnai neierobežotu piekļuvi vairāk pielietojuma jomām.

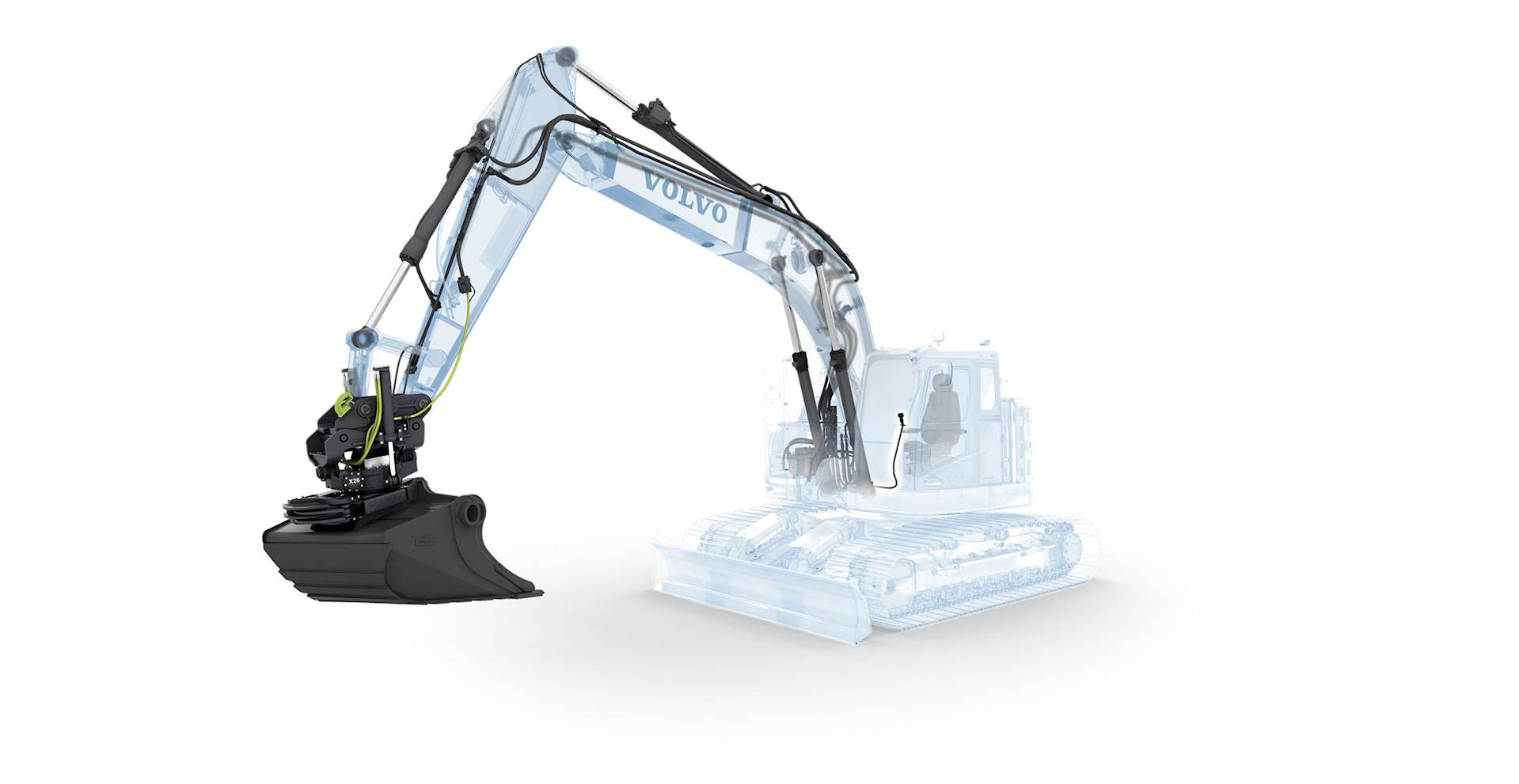

Tilt rotators

Volvo’s tilt rotator can be ordered factory-installed with dedicated joysticks and a color display that is fully integrated into the machine’s system. The new series of Volvo Aggressive Cut excavator buckets are perfectly matched to the factory-installed tilt rotator.

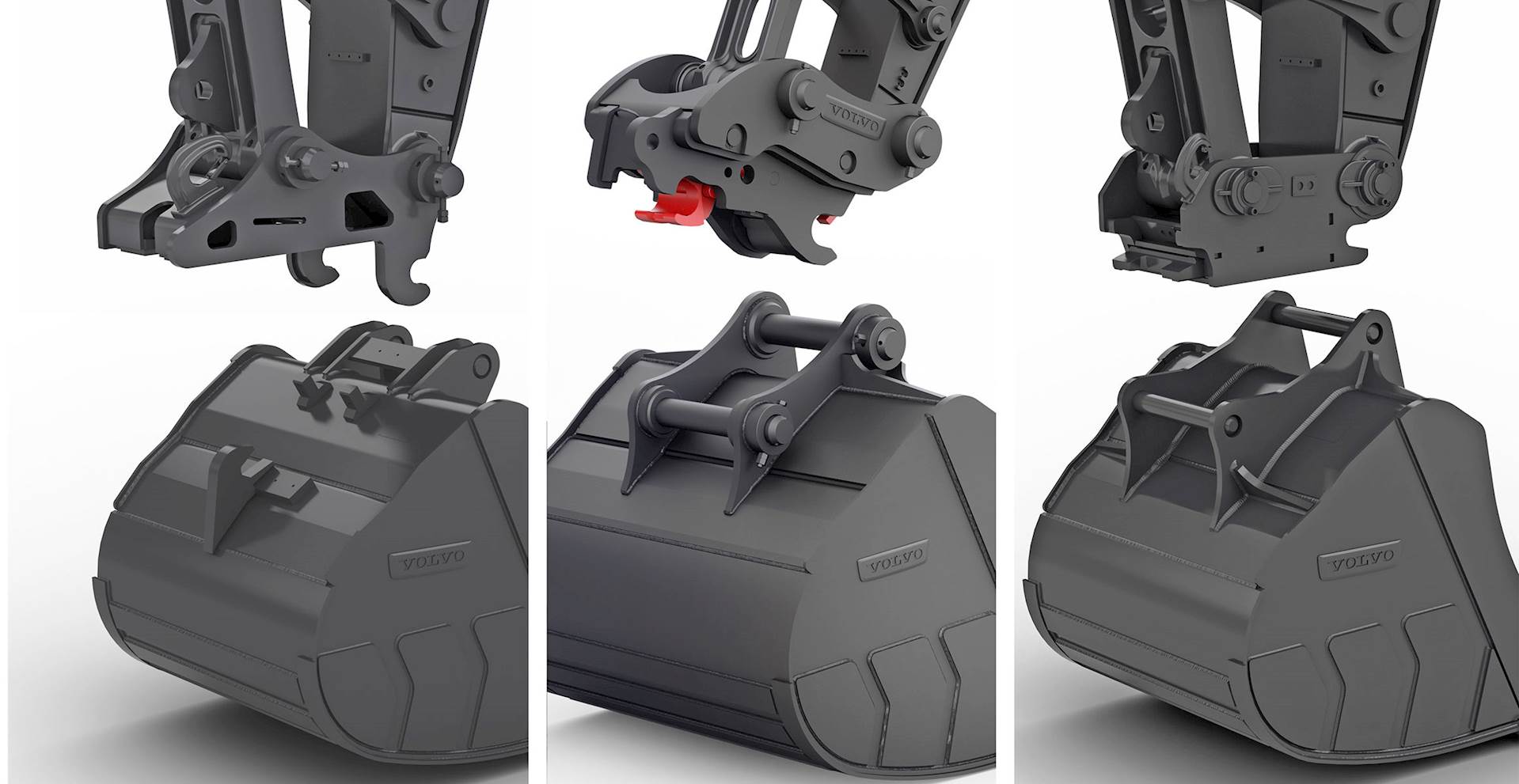

Locked on

Volvo offers a full range of quick couplers, which includes Volvo’s S-type, universal and Steelwrist® quick coupler. Offering smooth transitions and quick attachment changes, Volvo’s quick couplers make changing attachments quick and easy – all from the comfort and safety of the cab.

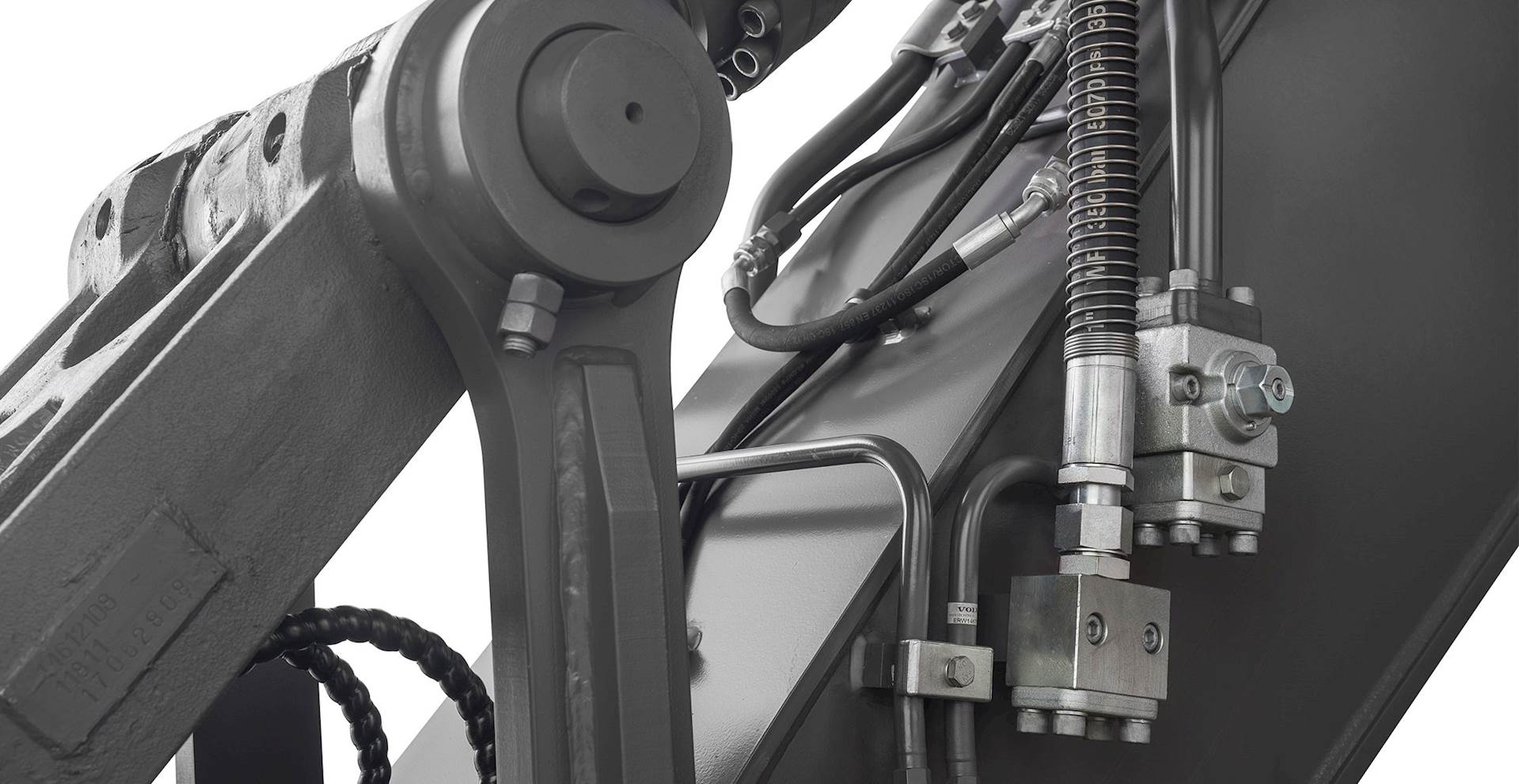

Auxiliary piping

To achieve the correct flow and pressure for hydraulic attachments such as mowers, grinders, shears, crushers and tilt rotators, the machine can be factory fitted with a variety of extra hydraulic lines, such as breaker and shear piping, as well as rotator piping.

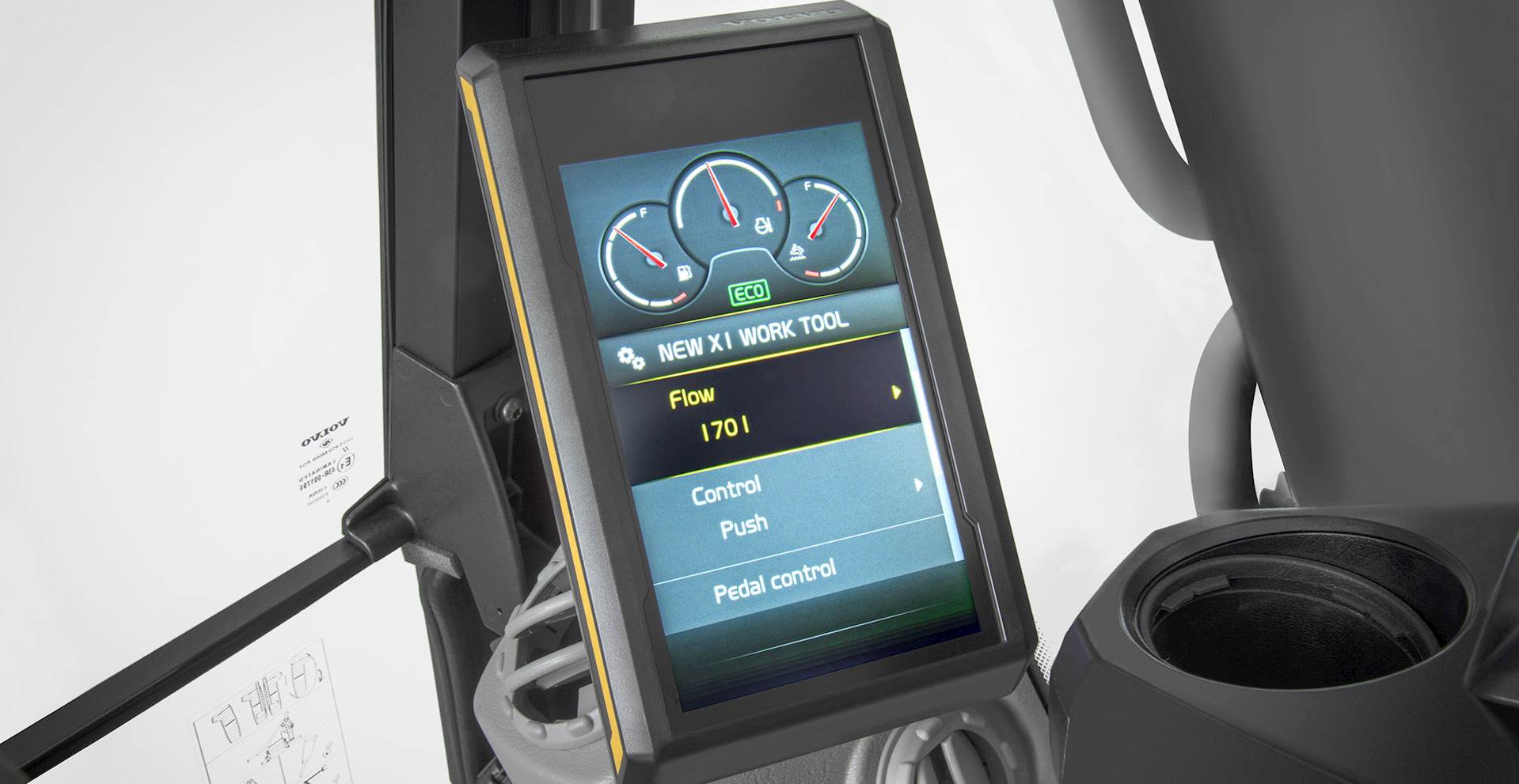

Get set and go

The password protected attachment management system allows storage for up to 20 different attachments. The user-friendly system allows the operator to pre-set the correct hydraulic flow and pressure inside the cab through the monitor, to get the most performance from attachments.
